TECHNICIAL SPECIFICATIONS
- Options: SNMP Card / Relay Card/ Parallel Board
- Self-Testing When UPS Startup
- Support Economic (ECO) Operation Mode
- Support Generator Input
- Wide Input Frequency Range (50Hz: 45-55Hz; 60Hz: 54-66Hz)
- Wide Input Voltage Range: 208-478Vac
- Cold start
- Output Power Factor is Changed When ion Different Battery Quantity 16 pcs: 0.7PF; 18pcs:0.8PF; 20pcs:0.9PF
- Optimization Battery Group, the Quantity of Battery: 16/18/20 pieces (optional)
- Input Current Harmonic: <5%
- Online Double Conversion with DSP Control
- N+X Parallel Redundancy
PRODUCT INTRODUCTION

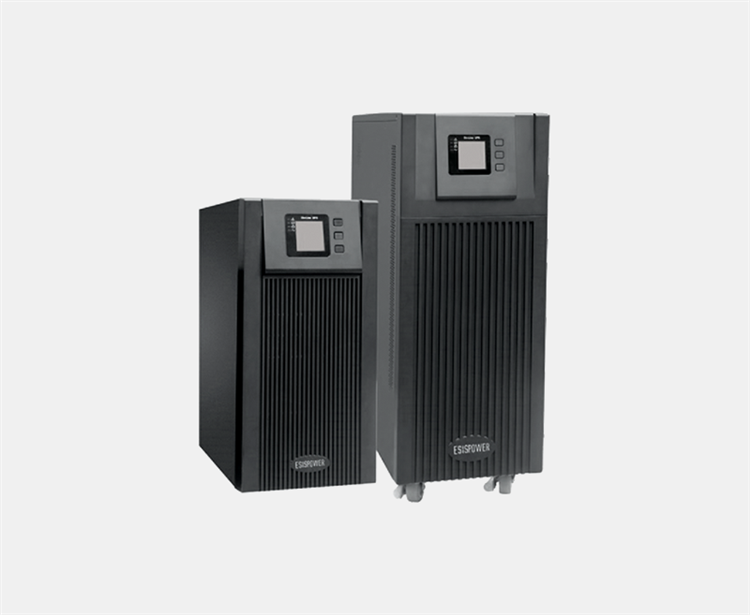

EGE 200K Series of three phases in / single phase out with high frequency online double conversion UPS is a stable and reliable UPS system which was designed by ESIS Company according to international power grid environment and network systems requirements. Its excellent quality and perfect usability provide safe network power supply with reliable protection and satisfy the users requirements of protecting overall equipment.
