TECHNICIAL SPECIFICATIONS
- Cold start
- Options: SNMP Card/Relay Card/ Parallel Board
- Self-Testing When UPS Startup
- Support Economic (ECO) Operation Mode
- Support Generator Input
- Wide Input Frequency Range (50Hz: 45-55Hz; 60Hz: 54-66Hz)
- Wide Input Voltage Range: 120-276Vac
- Output Power Factor is Changed When ion Different Battery Quantity 16 pcs: 0.7PF; 18pcs:0.8PF; 20pcs:0.9PF
- Optimization Battery Group, the Quantity of Battery: 16/18/20 pieces (optional)
- Input Current Harmonic: <3%
- Online Double Conversion with DSP Control
- N+X Parallel Redundancy
PRODUCT INTRODUCTION

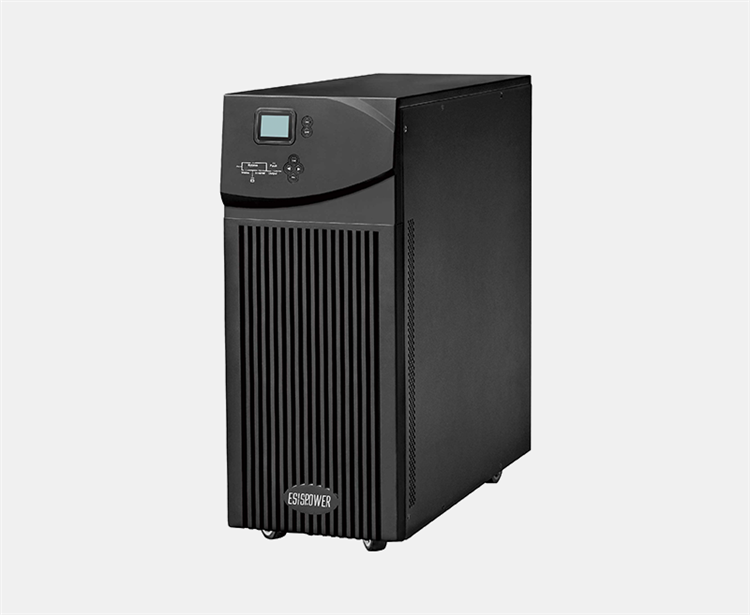

ESIS EGE 100K Series, produced with PWM and IGBT technology provide sinusoidal waveform output and contains advanced communication options. These series are 1 phase input, 1 phase output online UPS. ESIS EGE Series manufactured in different power ranges, are used to supply vital important equipment's such as medical analysis equipment's, operating rooms in hospitals, ultrasound equipment's, security systems, all kinds of automation systems, computer networks and communication systems. Thanks to higher protection providing technology. EGE series protect them from problems of utility failures and irregular voltage.
